Product Details:
|
| Special Features: | External Battery | Controller Type: | MPPT |
|---|---|---|---|
| Battery Type: | LiFePO4, Solar Battery | Power Source: | Solar Panel |
| Battery Size: | 120AH | Nominal Voltage: | 48V |
| Size: | 540*390*130mm | Weight: | 34kg |
| Protection Level: | IP20 | Protection: | Built-in Smart BMS |
| Communication Method: | RS485/RS232/CAN/Customization | Application: | BOATS, SUBMARINES, RV,solar Systems,data Center,Bank,UPS |
| Port: | YANTIAN | ||
| High Light: | IP20 Solar Photovoltaic Batteries,120ah lithium battery,48V lithium battery |
||

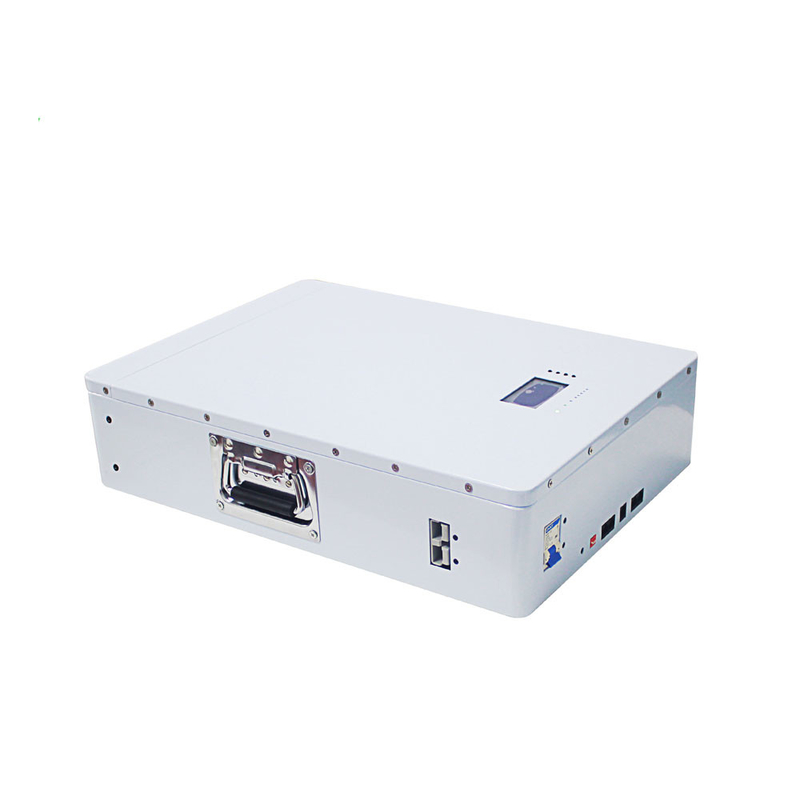

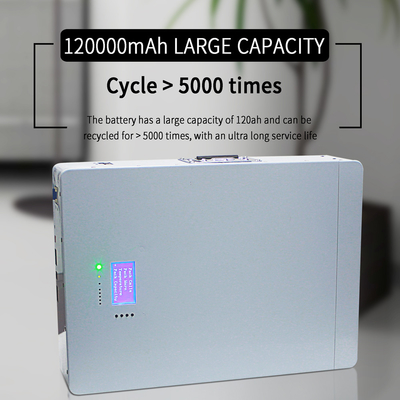

48v lithium ion battery with LCD BMS screen photovoltaic energy storage battery
|
Product parameter
|
|
|
Specification
|
8S1P-25.36V-120AH
|
|
Nominal Voltage
|
48V
|
|
Capacity
|
120AH
|
|
Charge current
|
50A
|
|
Discharge current
|
100A
|
|
Physical dimension
|
L:540*W:390*H:130(mm)
|
|
Weight
|
34KG
|
|
Cycle life
|
6000
|
|
Cooling method
|
Self Cooling
|
|
Charging temperature
|
0~45℃
|
|
Discharge temperature
|
-20~60℃
|
|
Support inverter brand
|
Goodwe/Growat/Victorn/LXP/Sofar/Deye/Sematec/SREN/TBB/SMA
|
|
In series and parallel
|
Support
|
| FBC LFP 48V Lithuim LifePO4 Batteries | |||
| Model LFP | 48V 50AH | 48V 100AH | 48V 200AH |
| Nominal Voltage | 51.2V | 51.2V | 51.2V |
| Nominal Capacity | 50Ah | 100Ah | 200Ah |
| Nominal Energy | 2560WH | 5KWH | 10KWH |
| Max Discharge Current | 50A | 100A/Customization | |
| Max Charge Current | 25A | 50A | 100A |
| Charge Voltage | 58.4±0.2V | ||
| Communication | Bluetooth, CAN, RS485, RS232, Optional | ||
| Operating Temperature Range | Charging:0~45℃ Discharging:-20~70℃ | ||
| Water Dust Resistance | IP54 | ||
| Humidity | 15% ~ 85% | ||
| Product Warranty | 5 Years | ||
| Design Life Time | 20+ Years | ||
| Cycle Time | 6000+ Cycles | ||
| Plastic Case | metal | ||
