Product Details:
|
| Battery Type: | LiFePO4, Wall Mounted Energy Storage Battery | Battery Size: | 120AH |
|---|---|---|---|
| Nominal Voltage: | 48V | Size: | 540*390*130mm |
| Weight: | 34kg | Protection Level: | IP20 |
| Protection: | Built-in Smart BMS | Application: | Electric Power Systems. Solar Energy Systems. Home Energy Storage |
| OEM/ODM: | Support Customization | Port: | YANTIAN |
| High Light: | Household Lifepo4 Solar Wall Battery,Wall Mounted Solar Energy Storage Battery,Lithium Ion Solar Energy Storage Battery |
||
| Model | Lithium Battery Module | Power Wall 48V 100AH/150AH/200AH | ||
| Voltage&Capacity | 48V 50AH | 48V 100Ah | 48v 150Ah | 48V 200Ah |
| Display | LCD Optional | LCD | LCD | LCD |
| BMS | Built-in BMS | Built-in BMS | Built-in BMS | Built-in BMS |
| Cycles LiFe | 6000Cycles | |||
| Warranty | 12Years | |||
| Communication | CAN/RS485 | |||
| Operation Temperature | Discharge: -20℃-60℃(pack internal temperature) | |||
| Operation Voltage Range | 40.5V～54.75V | |||
| Charge Voltage | 54V/58V | |||
| Charge Mode | 0.2C to 54V, then 54V,charge current to 0.02C (CC/CV) | |||
| Max Charge Current | 50A | 50A | 75A | 100A |
| Discharge Cut Off Voltage | 40V | 40V | 40V | 40V |
| Standard Discharge Current | 20A | 50A | 75A | 100A |
| Max Discharge Current | 20A | 50A | 75A | 100A |
| Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity | |||
| Discharge Temperature | -20 ℃ to 55℃ (-4F to 131F) @60±25% Relative Humidity | |||
| Battery Pack Size | customized | 485*190*650mm | 485*190*650mm | 485*190*650mm |
| Battery Pack Weight | 30KGS | 58.5KGS | 75KGS | 90KGS |
| Battery Rack Weight | / | 5KGS | 5KGS | 5KGS |
By express: We could deliver products by express when the quantity is small.
International Express: DHL/FedEx/UPS/TNT/EMS/SF for samples(Door-to-Door);
By Air: We could deliver products by air when the order is urgent. By Air or By Sea for Batch goods: for FCL; Airport/Port
receiving.
By Sea: We could deliver products by sea when the order is big.
Delivery Time:1-3 days for samples; 7-15 days for batch goods.
|
Product parameter
|
|
|
Specification
|
8S1P-25.36V-120AH
|
|
Nominal Voltage
|
48V
|
|
Capacity
|
120AH
|
|
Charge current
|
50A
|
|
Discharge current
|
100A
|
|

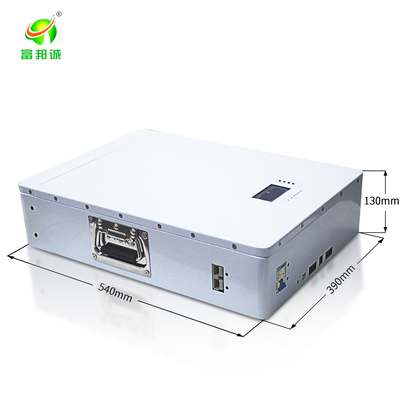

Physical dimension
|
L:540*W:390*H:130(mm)
|
|
Weight
|
34KG
|
|
Cycle life
|
5000
|
|
Cooling method
|
Self Cooling
|
|
Charging temperature
|
0~45℃
|
|
Discharge temperature
|
-20~60℃
|
|
Support inverter brand
|
Goodwe/Growat/Victorn/LXP/Sofar/Deye/Sematec/SREN/TBB/SMA
|
|

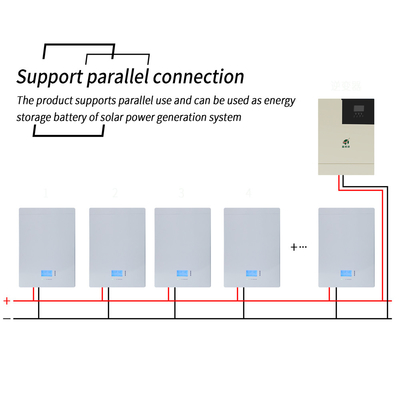

In series and parallel
|
Support
|
