Product Details:
|
| Battery Type: | LiFePO4 | Product Name: | Lithium Battery Pack |
|---|---|---|---|
| Battery Size: | 12V 200AH | Battery Cell: | Lifepo4 |
| Cycle Life: | 6000 | Protection: | Built-in Smart BMS |
| Housing: | ABS | Application: | BOATS, Golf Carts, SUBMARINES, Electric Folklifts,solar Systems,RV |
| Module/Protocol: | Support Customization | OEM/ODM: | Support Customization |
| High Light: | 200ah 12 Volt Battery Pack,TUV Lifepo4 Battery 12v,Lifepo4 Rv Lithium Batteries |
||

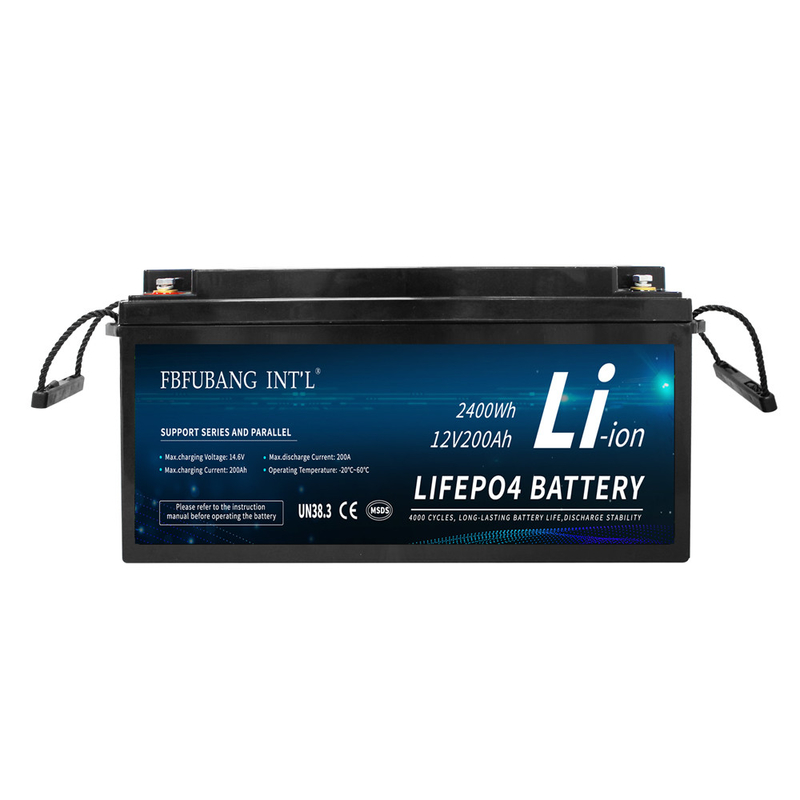

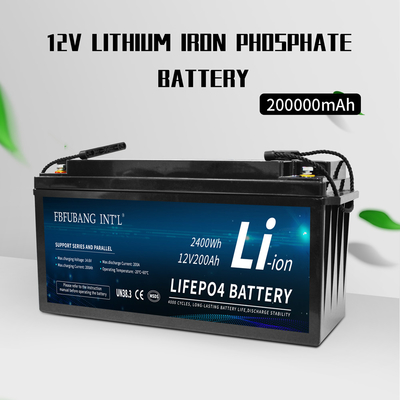

12v 200ah Lifepo4 battery has the following features
:
1. A direct replacement for lead-acid batteries
2. Maintenance-free, modular, the weight is only one-third of the lead-acid battery of the same specification
4. Can be connected in series, up to 48V
5. Built-in battery management system (BMS) protects the battery from the influence of too high or low voltage, high current, short circuit and too hot or too cold
The warranty period is 24 months from the date of shipment;
We guarantee replacement in cases where the battery proves defective due to the manufacturing process and not customer abuse and misuse.
Two versions - Bluetooth and non-Bluetooth versions:
You can display the monitoring battery data through the APP:
SOC, period, operating current, operating voltage, temperature, remaining capacity, full charge
Capacity, manufacturer date, etc
|
Product Name
|
12V 200AH Lithium ion battery
|
|
|
Model
|
200AH 12.8V
|
|
|
Electrical Specification
|
|
|
|
Chemical
|
Lithium iron phosphate
|
|
|
Nominal Voltage
|
12.8V
|
|
|
Nominal Capacity
|
200AH
|
|
|
Cell type
|
3.2V 6500mah
|
|
|
Configuration
|
4S32P
|
|
|
Energy
|
2560WH
|
|
|
Internal Resistance
|
≤80mΩ
|
|
|
Terminal Type
|
M8/M10
|
|
|
Dimension
|
520*238*218mm
|
|
|
Weight
|
Around 26kg
|
|
|
Charge and discharge specification
|
|
|
|
Charging Method
|
CC/CV
|
|
|
Standard Charging Voltage
|
14.6V
|
|
|
Recommended Charging Current
|
40A
|
|
|
Max. Charging Current
|
200A
|
|
|
Recommended Discharging Current
|
100A
|
|
|
Max. Discharging Current
|
200A
|
|
|
Pulse Discharge Current
|
300A/10S
|
|
|
Operating Temperature
|
|
|
|
Standard Charging Temperature
|
0~45℃
|
|
|
Standard Discharging Temperature
|
-20~55℃
|
|
|
Storage Temperature
|
-10~45℃
|
|
|
Notice:
If the 12V 200AH Lithium ion battery need be stored for a long time, Pls make sure at least one charge & discharge cycle every six months. |
|
|
|
12v 200ah lithium ion battery Cycle time and Warranty
|
|
|
|
Cycle life
|
4000
|
|
|
Warranty
|
24 months
|
|
