Product Details:
|
| Features: | Built-in Smart BMS | Battery Type: | LiFePO4,Battery Pack |
|---|---|---|---|
| Battery Size: | 12V | Housing: | ABS |
| Application: | BOATS, Golf Carts, SUBMARINES, Electric Forklifts, Solar Systems,RV | Commercial Warranty: | 1~3 Years |
| High Light: | 100ah Lifepo4 Battery Packs,ISO9001 Lifepo4 Battery Packs,Electric Forklifts Li Ion Battery |
||
^Serial assembly can range from 12V to 48V (up to 4 items in series if you are professional at battery )
^CE, MSDS and UN38.3 certification
^1~3 years commercial warranty as standard,.
|
Nominal
Voltage |
Typical
Capacity |
Charge
|
Discharge
|
Dimension/(mm)
|
|
|
12V
|
12AH
|
0.2C-1C
|
0.2C-2C
|
L151*W99*H84
|
1.5
|
|
12V
|
50AH
|
0.2C-1C
|
0.2C-2C
|
L223*W120*H175
|
6
|
|
12V
|
100AH
|
0.2C-1C
|
0.2C-2C
|

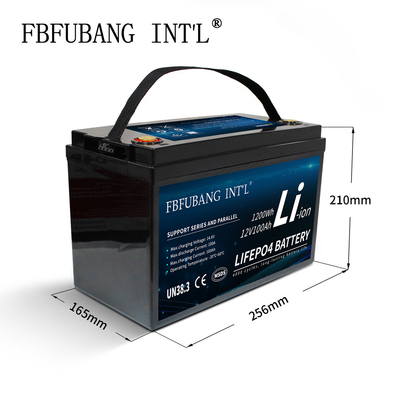

L256*W165*H210
|
12
|
|
12V
|
150AH
|
0.2C-1C
|
0.2C-2C
|
L406*W173*H236
|
17.5
|
|
12V
|
200AH
|
0.2C-1C
|
0.2C-1C
|
L490*W171*H240
|
19
|
|
12V
|
300AH
|
0.2C-1C
|
0.2C-1C
|
L521*W238*H218
|
23
|
|
12V
|
400AH
|
0.2C-1C
|
0.2C-1C
|
L521*W238*H218
|
32
|
|
24V
|
30AH
|
0.2C-1C
|
0.2C-2C
|
L521*W238*H219
|
12
|
|
24V
|
50AH
|
0.2C-1C
|
0.2C-2C
|
L256*W165*H210
|
12
|
|
24V
|
100AH
|
0.2C-1C
|
0.2C-2C
|
L490*W171*H240
|
19
|
|
24V
|
150AH
|
0.2C-1C
|
0.2C-2C
|
L521*W238*H218
|
23
|
|
24V
|
200AH
|
0.2C-1C
|
0.2C-1C
|
L521*W238*H218
|
32
|
|
24V
|
250AH
|
0.2C-1C
|
0.2C-1C
|
L460*W300*H200
|
36
|
|
24V
|
300AH
|
0.2C-1C
|
0.2C-1C
|
L460*W300*H240
|
48
|
|
48V
|
50AH
|
0.2C-1C
|
0.2C-2C
|
L490*W171*H240
|
19
|
|
48V
|
75AH
|
0.2C-1C
|
0.2C-2C
|
L460*W360*H160
|
35
|
|
48V
|
100AH
|
0.2C-1C
|
0.2C-2C
|
L450*W350*H150
|
32
|
|
48V
|
200AH
|
0.2C-1C
|
0.2C-1C
|
L500*W360*H230
|
65
|
|
48V
|
250AH
|
0.2C-1C
|
0.2C-1C
|
customized size
|
|
|
48V
|
300AH
|
0.2C-1C
|
0.2C-1C
|
customized size
|
|
Advantage:
1. Maintenance free. Modular design for easy installation and capacity expansion.
2. Long cycle life. 2000 Cycle Times 80% DOD
4000 Cycle Times 60% DOD
6000 Cycle Times 40% DOD
3. Bulit-in smart BMS with multiple protection and communication functions.
4. Wide working temperature range and high reliability.
5. Multiple battery units can be connected in parallel,suitable for high energy storage applications.
6. Compatible with various charge controllers and inverters.
Wider use: household energy storage, RV fishing boat power supply, temporary power supply, and small and medium-sized machinery
