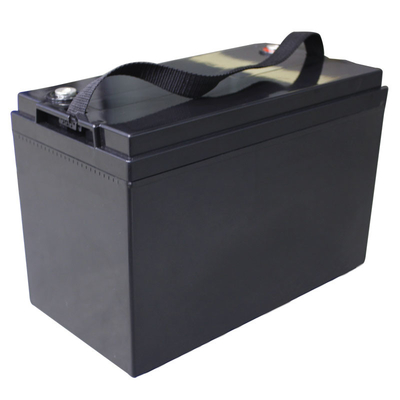

Product Details:
|
| Battery Type: | LiFePO4 | Battery Type: | Lithium Ion Battery Pack |
|---|---|---|---|
| Battery Cell: | Lifepo 4 | Weight: | 11kg |
| Size: | 330*173*215mm | Cycle Life: | 4000 |
| Housing: | ABS | Protection: | Built-in Smart BMS |
| Application: | BOATS, Golf Carts, SUBMARINES, Electric Folklifts,solar Systems | OEM/ODM: | Support Customization |
| Port: | YANTIAN | ||
| High Light: | 1280WH Rechargeable Lithium Ion Battery,12.8v Rechargeable Lithium Ion Battery 24V,48V LiFePO4 Battery Pack |
||
| Products Specification | |||
| Model | LFP100-12 | LFP200-12 | LFP300-12 |
| Nominal Voltage(V) | 12.8 | 12.8 | 12.8 |
| Nominal Capacity(Ah) | 100 | 200 | 300 |
| Usable Capacity(Wh) | 1280 | 2560 | 3840 |
| Dimension(mm) | 330*175*215 | 485*175*240 | 520*268*220 |
| Weight(Kg) | 11 | 25 | 30 |
| Cycle Life | ≥4000 @ 25℃ | ≥4000 @ 25℃ | ≥4000 @ 25℃ |
| Working Temperature ℃ | -20~55 | -20~55 | -20~55 |
| Discharge Voltage (V) | 12.8 | 12.8 | 12.8 |
| Charge Voltage(V) | 13.5~14.6 | 13.5~14.6 | 13.5~14.6 |
| Internal Impedance(mΩ) | ≤20 | ≤10 | ≤10 |
| Charge / Discharge Current (A) | charge:50 | charge:40 | charge:60 |
| discharge:50 | discharge:40 | discharge:60 | |
| Design Life(Years) | 20 | 20 | 10 |
|
Electrica Characteristics |
Nominal Voltage
|
12.8V
|
|
|
Nominal Capacity
|
100Ah
|
|
|
Energy
|
1280Wh
|
|
|
Internal Resistance
|
≤20mΩ
|
|
|
Cycle Life
|
≥4000 cycles @1C 100%DOD
|
|
|
Months Self Discharge
|
<3%
|
|
|
Efficiency of Charge
|
100% @0.5C
|
|
|
Efficiency of Discharge
|
96~99% @1C
|
|
Standard Charge |
Charge Voltage
|
14.6±0.2V
|
|
|
Charge Mode
|
0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV)
|
|
|
Charger Current
|
50A
|
|
|
Max. Charge Current
|
170A
|
|
|
Charge Cut-off Voltage
|
14.6V±0.2V
|
|
Standard Discharge |
Continuous Current
|
100A
|
|
|
Max. Pulse Current
|
300A(<10s)
|
|
|
Discharge Cut-off Voltage
|
9.2V
|
|
Environmental |
Charge Temperature
|
0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity
|
|
|
Discharge Temperature
|
-20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity
|
|
|
Storage Temperature
|
0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity
|
|
|
Water Dust Resistance
|
IP56
|
|
Mechanical |

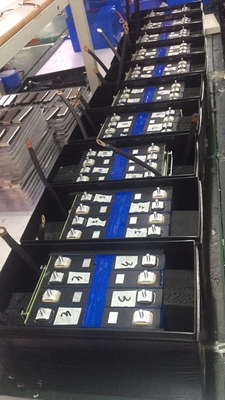

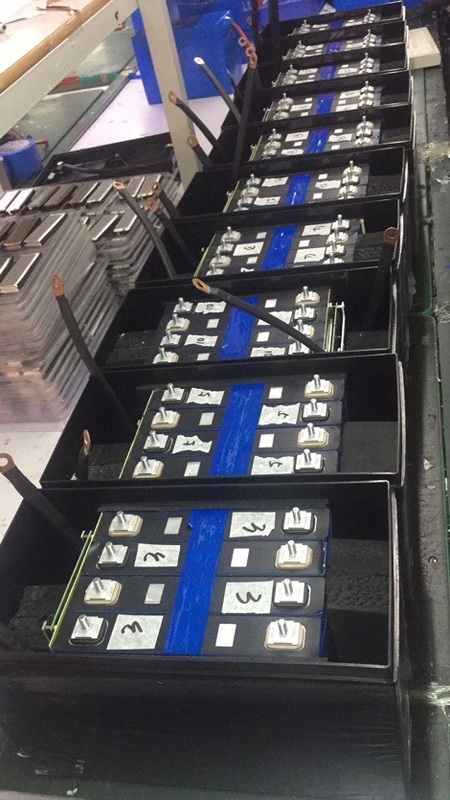

Cell & Method
|
4S1P
|
|
|
Plastic Case
|
ABS
|
|
|
Dimensions (in./mm.)
|
330*173*215mm
Customized |
|
|
Weight (lbs./kg.)
|
11kg
|
|
|
Terminal
|
T11
|
|
|
Protocol (optional)
|
SMBus/RS485/RS232
|
|
|
SOC (optional)
|
LED
|
FAQ
1.Q: I need more function such Bluetooth and LED screen,i also want anti vibration design for using at my Marine/RV/Vehicle can i customized my battery pack?
A: Yes of course, just let me know what exactly you need, our professional engineer team will give you an excellent solution, more than you expection.
2.Q: I'm very sensible in price, i am a wholesaler of battery pack, if i sell your battery pack in my city , the profit is very low, can i get a cheaper price? and i can see your competitor sells more cheap then you.
A: It is highly suggest that you can have a comparision with our competitor. Indeed, there are also some supplier provide low price battery pack but using cheap material. Pls pay attention to the cycle life and the warranty, and we have anti vibration design and communication design. maybe you know the price of cylindrical cell is far cheap then prismatic cell.besides, we also provide cylindrical cell solution , pls contact us directly and we will tell you more. Most Importantly, we can give you a professional solution according to your local market? low profit? Don't worry about that, our engineer team will help you help you to solve it.
3.Q: I can see the post that your company shows the warranty is 5 Years, so no matter what the battery pack be used for, all 5 Years?
A: No sir, maybe you know the cycle life of cell is not only depends on the quality itself , but also be affected by the discharge/charge rate the actual temperature. So it is unresponsibility at all if a supplier tell you the cycle life but no talking about the actual usage. For room temperature 25℃ and 1C discharge and 0.5C charge, the cycle life of the battery pack can exceed 4000 cycles and warranty 5 Years, only energy storage usage.
4.Q: Can these battery pack be compatible with my inverter? do you have a company list of the inverter which is compatible?
A: Yes sir, our battery pack can compatible with most brand of inverter on the market, contact us and let me tell you more.
5.Q: What about the delivery time and shipping?
A: some of times in stock, we can make 3-7days fast delivery.
For USA,Canada,Austraila and most of European country , we provide tax included services, door to door, once you place an order ,then you will receive your new battery pack in about 40-55 days at your home!
We also have Oversea warehouse service, 3-7days arrive, no tax fees, please contact with our sales !
6.Q:Can it be series or parallel for use?
A: Yes sir, it can support max. 4 in series or parallel connection for use ( 12V series ) and no any additional device.
